Bambu Studio Settings Explained 02: Normal vs Tree Supports

August 29, 2026

BAMBU STUDIO SETTINGS EXPLAINED · 02
Support Fundamentals: Normal vs Tree

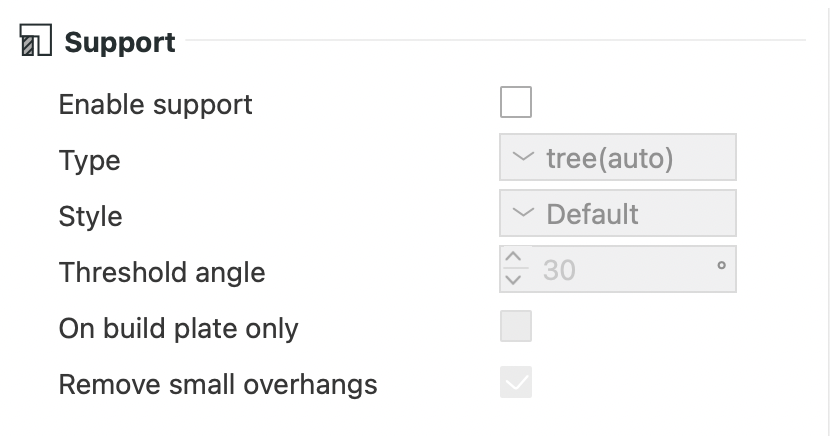

Support settings are a trade-off between three things: holding the overhang in the correct position, leaving an acceptable underside, and allowing the support to be removed without damaging the model. This guide covers the first decisions to make in Bambu Studio: Normal or Tree, Grid or Snug, Slim or Strong or Organic or Hybrid, Threshold angle, and On build plate only.

Scope of this article: this is the support foundation. Interface layers, top Z distance, support filament, XY clearance, branch diameter and manual painting will be covered in the advanced follow-up.

Normal support vs Tree support

Type	How it grows	Typical strengths	Watch for
Normal	Projects supported overhang regions down in relatively straight columns or volumes.	Large flat roofs, broad mechanical undersides, predictable coverage.	More material and larger contact areas; can touch more of the model.
Tree	Samples contact points beneath overhangs, merges them into branches and routes those branches toward the bed.	Figures, curved surfaces, scattered overhangs and reducing contact on visible areas.	Long branches can flex; trapped cavities or blocked paths may still need manual support planning.

Auto vs manual: Normal (auto) and Tree (auto) detect eligible overhangs automatically. The manual versions generate support only where support enforcers or painted support regions tell them to. Manual does not mean “editable automatic support”; it changes where support is permitted to appear.

Normal support: Grid vs Snug

Normal Grid support preview in Bambu Studio — **Grid:** Bambu Studio expands and regularises the support region into block-like areas. It is the default Normal style and gives broad, stable coverage.

Normal Snug support preview in Bambu Studio — **Snug:** the support follows the actual overhang footprint more tightly instead of expanding it into large rectangles.

Choose Grid when…

the underside is broad and flat, the support is tall, or you want a simple stable column under a functional part. It is often robust, but can consume more material and touch more adjacent surfaces.

Choose Snug when…

the overhang outline is irregular, Grid expands into details it does not need to touch, or you want the Normal-style support to follow the model more closely. Preview narrow tips carefully for stability.

Tree support styles

The style changes how aggressively branches merge, how thick and connected they become, and whether a large flat overhang is converted to a conventional grid. The four previews below use the same model so the structural difference is visible.

Tree Slim support preview in Bambu Studio — **Tree Slim:** aggressively merges branches to reduce support volume while using wall count and smoother branches to retain useful strength. Good when saving material and easy removal are priorities.

Tree Strong support preview in Bambu Studio — **Tree Strong:** merges more conservatively and produces thicker, more connected branches. Useful for tall or heavy supported regions, but it can take more effort to remove.

Tree Organic support preview in Bambu Studio — **Tree Organic:** uses curved, organic branch shapes with aggressive merging. It routes around sculpted geometry efficiently and is often a strong first choice for figures.

Tree Hybrid support preview in Bambu Studio — **Tree Hybrid:** combines tree branches with a Normal Grid structure beneath large flat overhangs. It is designed to give a broad roof the coverage a pure tree may not provide as evenly.

Style	Start here for	Main compromise
Slim	Light, scattered overhangs and lower material use	May be less tolerant of tall, heavily loaded branches
Strong	Large supported mass or long/tall branches	More material and potentially harder removal
Organic	Figures, curves and supports that must route around the model	Not always the best roof beneath a wide flat plane
Hybrid	A model mixing sculpted details with large flat overhangs	Uses more conventional support beneath flat regions

If the Style field is set to Default, Bambu Studio may choose the effective Tree style based on other process settings. Bambu Lab’s current documentation states that Tree Hybrid is selected when support material or adaptive layer height is enabled; otherwise Tree Organic is selected. Because software behaviour can change, explicitly choose a style when repeatability between saved jobs matters.

Threshold angle: the direction matters

Support threshold angle measured from the horizontal plane — In Bambu Studio the support threshold is measured relative to the horizontal plane—not from the vertical wall.

Bambu Studio automatically supports surfaces whose slope is below the selected threshold. Therefore:

A larger threshold generally creates more support. At 45°, more sloped faces qualify than at 30°.
A smaller threshold generally creates less support. It limits automatic support to flatter, more difficult overhangs.
The current documented default is 30°, which Bambu Lab describes as safe for most materials. It is a starting point, not a law.

Cooling, layer height, wall speed, bridge length, material and nozzle size all change what an overhang can print cleanly. A PLA profile with strong cooling may tolerate a different threshold from ABS or a soft TPU. After changing the angle, inspect the first unsupported perimeter of every critical underside in Preview.

When should “On build plate only” be enabled?

When enabled, support may start only on the build plate; Bambu Studio will not place the base of a support structure on top of the model. This can protect visible surfaces and make removal easier, but it does not guarantee that every requested overhang still has a viable path to the bed.

Usually enable it	Usually leave it off
The underside is open to the build plate. A tree can route around the outside of the model. You want to avoid support scars on a finished top surface. The model is a figure or open shell with accessible overhangs.	An internal roof or cavity has no route to the bed. An overhang sits directly above another part of the model. The available route is too narrow for a stable branch. The supported region is heavy and needs a nearby foundation.

A reliable selection workflow

Rotate the model first. The best support is often the support you remove through better orientation.
For a broad mechanical underside, compare Normal Snug, Normal Grid and Tree Hybrid.
For a figure or curved object, start with Tree Organic; test Slim if material and contact reduction matter, or Strong if branches are tall and heavily loaded.
Set Threshold angle conservatively, slice, and inspect the Preview layer where each supported surface begins.
Enable On build plate only only after confirming every critical contact still connects to a stable branch or column.
Check removal access: a support that slices correctly but cannot be reached with pliers is not a practical support.

Preview checklist: look for unsupported islands, long branches with tiny bases, support growing into trapped cavities, a grid touching decorative faces, and large flat roofs resting on only a few tree tips. Do not judge support only from the coloured model view.

What comes next

The advanced follow-up is now available: 03 — Advanced Support Settings, covering Top Z and XY distance, interface layers, support filament, branch controls and manual painting.

Previous in the series: 01 — Classic vs Arachne Wall Generator.

References and image sources

The Normal and Tree comparison screenshots are reproduced from Bambu Lab’s official Support documentation for instructional commentary. The settings-panel screenshot was supplied by Fashion3D. Interface labels and defaults may change between software versions and printer profiles.
