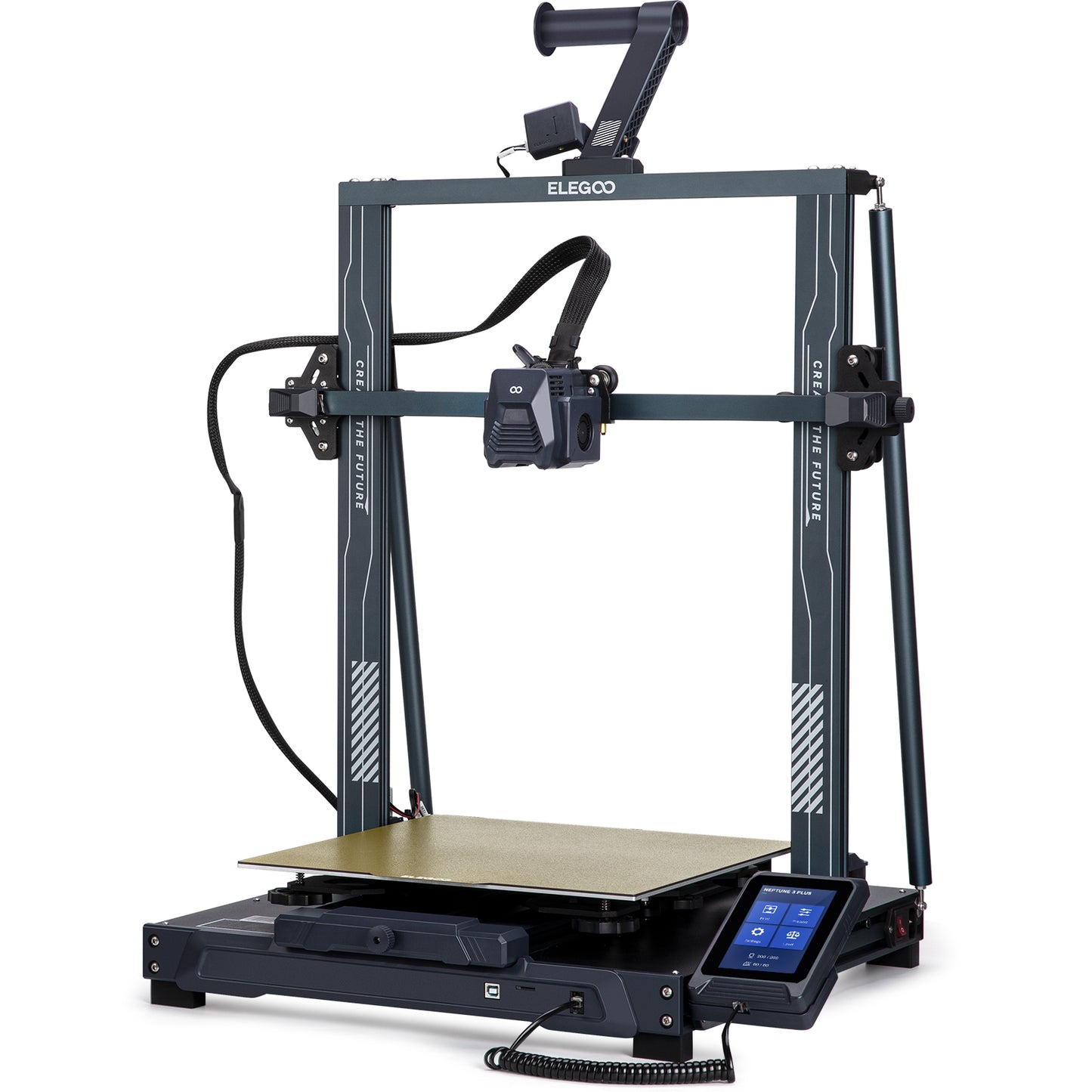

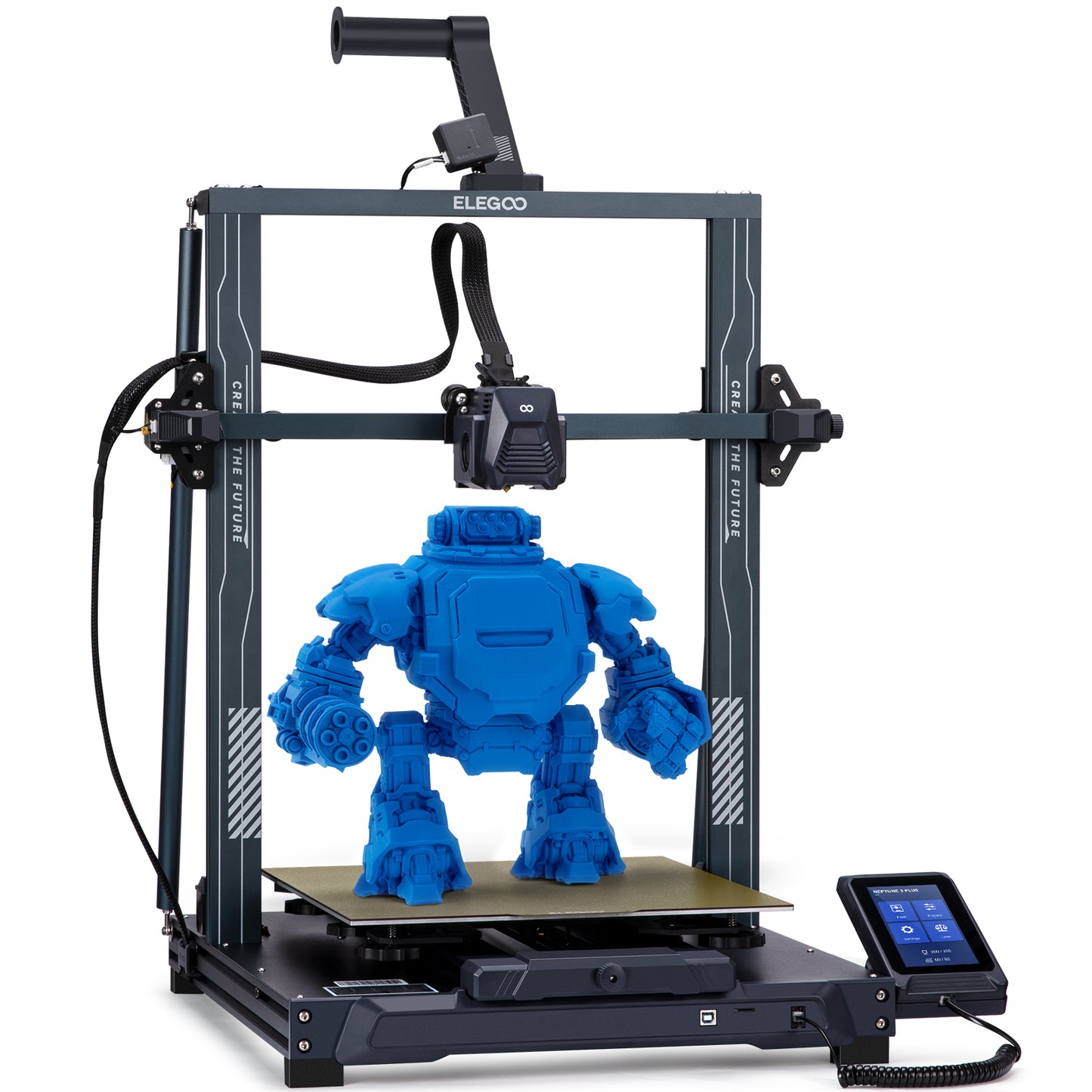

ELEGOO Neptune 3 Plus FDM 3D Printer with Larger Build Volume of 320x320x400mm
Product Description

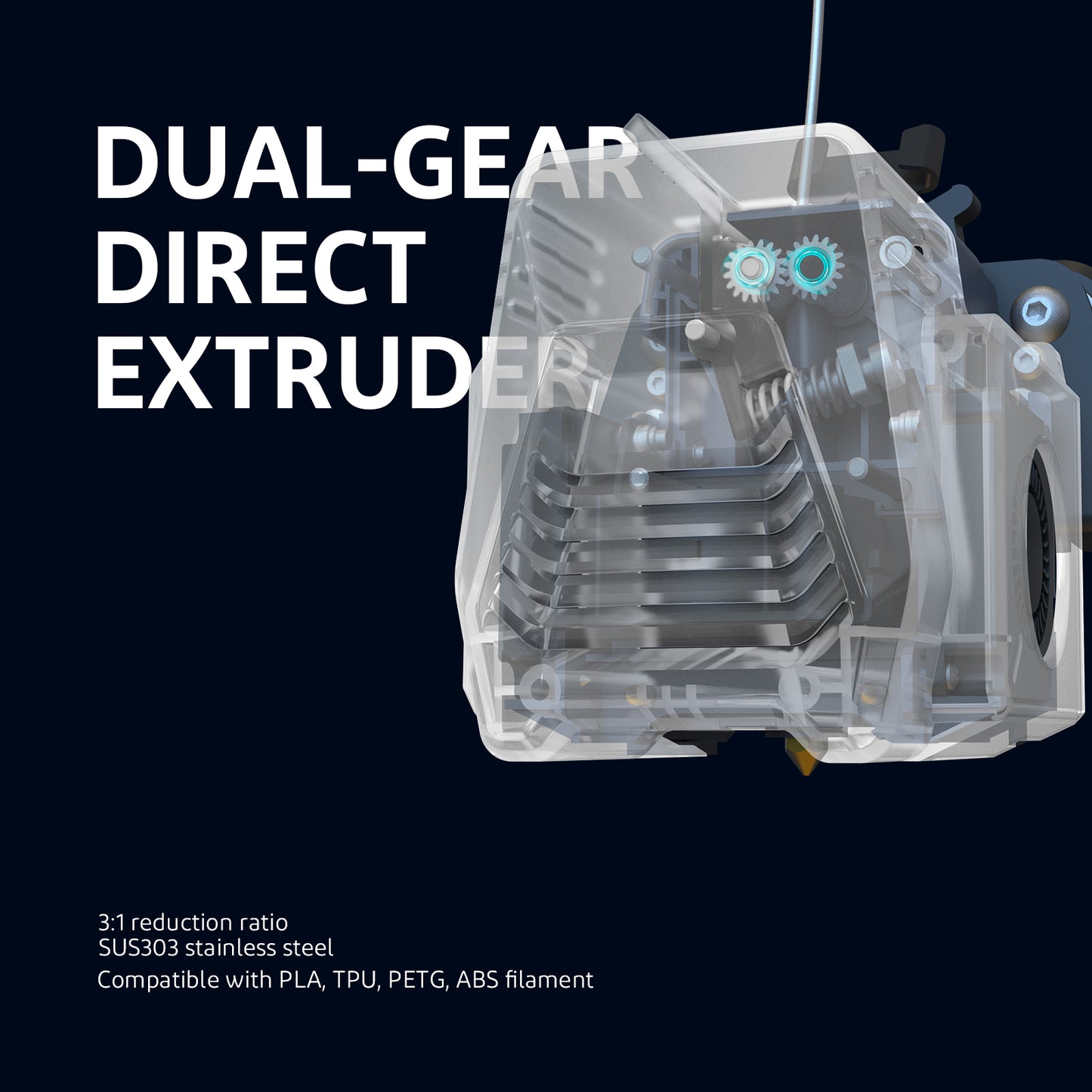

- 【Dual-Gear Direct Extruder】The new dual-gear direct extruder with a better grip on the filament and strong pushing force for smoother filament feeding and more stable & accurate printing, which greatly reduces the risk of nozzle blockage and under extrusion, and printing well with PLA, ABS, PETG and even flexible filaments like TPU.

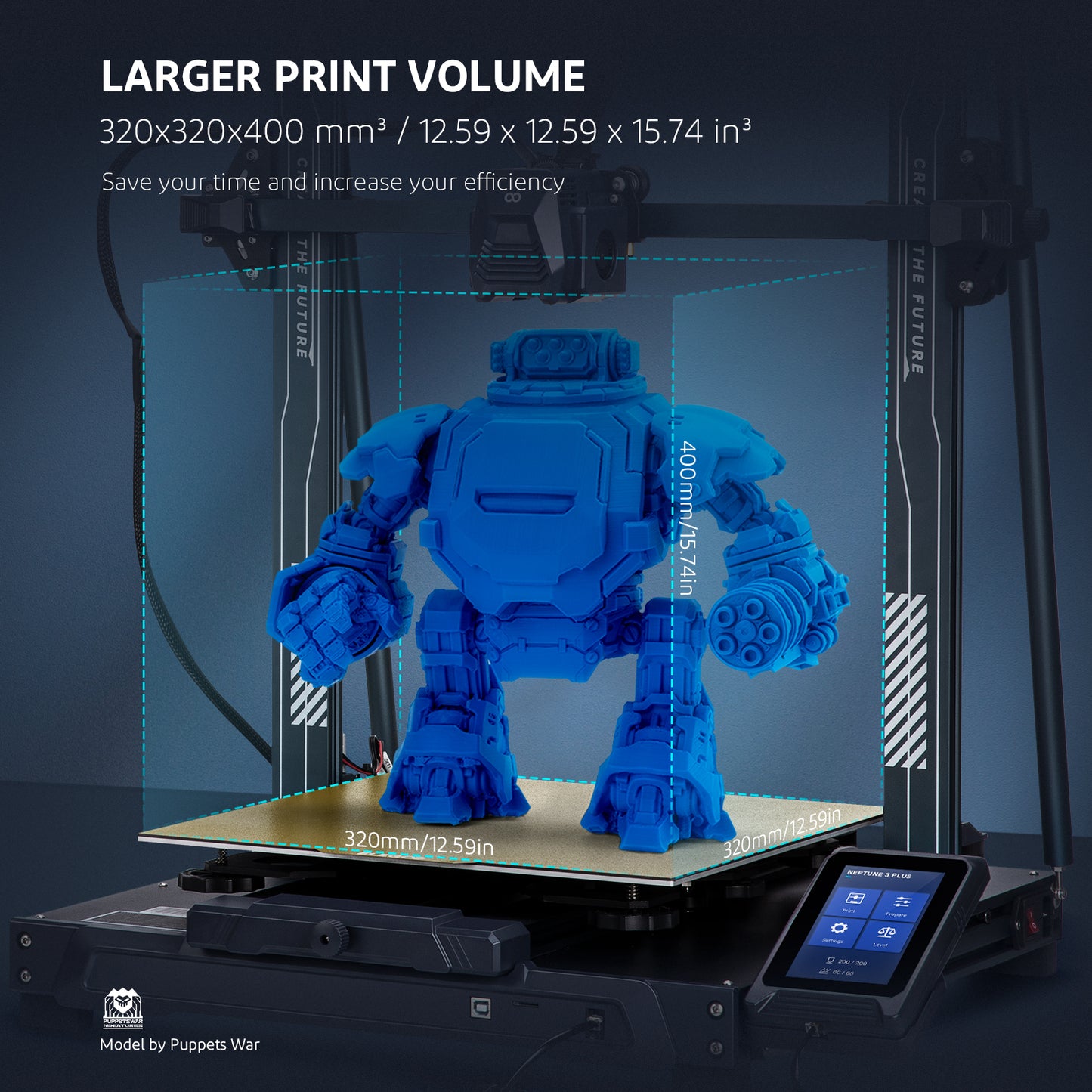

- 【Larger Print Volume】The larger-than-average build volume of 320x320x400mm/12.59 x 12.59 x 15.74 inches gives you enough space to freely arrange your prints, print larger models, or carry out batch printing with high efficiency.

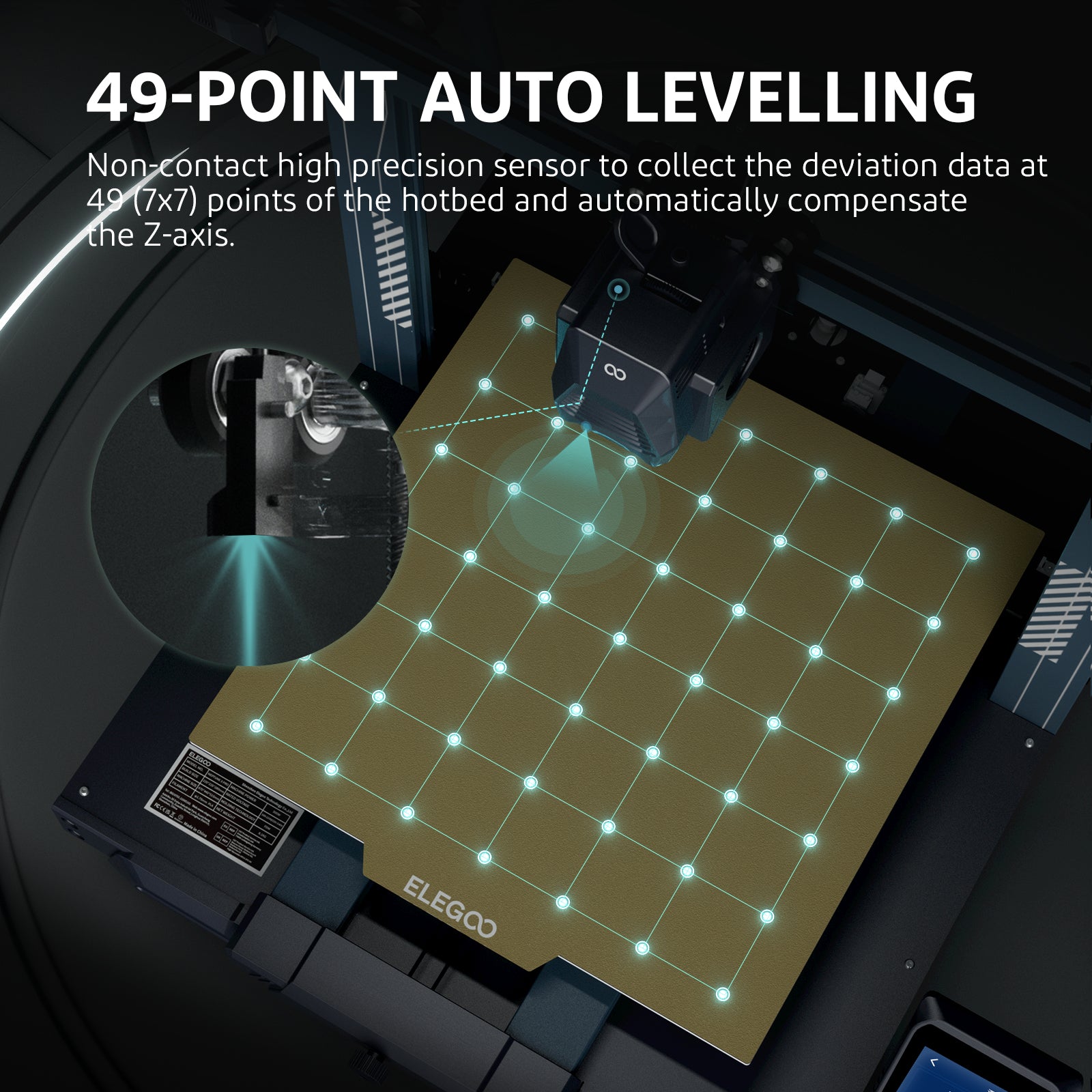

- 【Auto Bed Leveling】ELEGOO Neptune 3 Plus adopts a non-contact high precision sensor to collect the deviation data at 49 (7x7) points of the hotbed, and then automatically adjust the Z-axis height to compensate for any irregularities and unevenness of the printing bed. There are also hand-twisting knobs underneath the hotbed to fine-turn the print bed with a single twist, thus ensuring a perfect first-layer print.
- 【PEI Magnetic Platform】PEI magnetic platform with a special coating and spring steel sheet for good adhesion and anti-warping, just gently bend the print steel plate to release or pop off the prints. The 420W high-power hotbed can quickly heat up to 100°C.
- 【Z-axis Dual Lead Screw】The dual synchronized lead screws and dual-motor drive make the Z-axis movement more stable and smooth, avoid printing deviation driven by a single Z-axis lead screw motor, and improve printing accuracy and stability. With STM 32-bit motherboard, the X/Y/Z/E axes are all driven by silent drivers to effectively reduce the printing noise to below 50dB.
- 【Removable Capacitive Touchscreen】The 4.3-inch removable capacitive touch screen can be operated by hand-held or fixed on the base. Built-in print model preview function to preview the model image before printing, and observe the printing progress by previewing the real-time comparison image of the printed model.
Technical Specifications
-
Product model: Neptune 3 Plus
- Frame material: CNC machined aluminum extrusion
-
Modeling technology: FDM(Fused Deposition Modeling)
- Rated voltage: 100-240V 50/60Hz
- Forming size: 320X320X400(mm³)
- Platform size: mm
- Equipment dimensions: 578*533*640mm
- MAX. nozzle temperature: 260° Celsius
- MAX. hotbed temperature: 100° Celsius
- File transfer: TF Card offline printing, online printing
- File format: .stl, .obj, .amf
- Filament compatibility: PLA, ABS, TPU, PETG, Wood, Marble, etc
- UI Language: English, French, German, Russian, Italian, Spanish, Japanese, Chinese
- Resume printing: Yes
- Filament detection: Yes
- Net weight: 14.2KG
