Bambu Studio Settings Explained: A Practical Guide to Quality, Strength, Speed and Supports

Start with the profile before changing individual numbers

Bambu Studio exposes hundreds of settings, but most failed prints do not require hundreds of changes. Begin by selecting the correct printer, nozzle diameter, build plate and filament profile. Those choices establish safe temperatures, cooling, retraction, machine limits and volumetric flow. Then change only the settings that solve a specific problem.

A useful rule is to save a new project or preset before experimenting, change one group of settings at a time, and record the result. Otherwise, a faster print that suddenly warps or loses detail becomes difficult to diagnose.

Quality settings

Setting	What it changes	Practical guidance
Layer height	Vertical detail, slopes and print time	Use smaller layers for curved or detailed surfaces; larger layers for quick prototypes. Variable layer height can combine both.
Line width	Width of each extrusion path	The profile defaults are usually reliable. Change it deliberately for thin walls, strength or flow—not as a first troubleshooting step.
Seam position	Where perimeter starts and stops meet	Place the seam at the back or on a corner for display parts; random seams can spread marks but may create a textured appearance.
Ironing	Smooths selected top surfaces	Useful for broad cosmetic top faces, but adds time and needs stable flow calibration.
Elephant-foot compensation	Offsets first-layer expansion	Helpful for press fits and parts that must sit flush; excessive values reduce the first-layer footprint.

Strength settings

Wall loops often improve practical strength more efficiently than very dense infill. For a functional bracket, adding walls can reinforce holes, edges and the exterior load path. Top and bottom shell layers close the part and prevent sparse infill showing through. Increase them when top surfaces sag or when a part needs a thicker skin.

Sparse infill density controls how much internal structure is generated, while the pattern controls how forces are distributed and how quickly the toolpath prints. Gyroid is a useful general-purpose option; grid and rectilinear patterns can be quick; specialised patterns may suit particular loads. A part’s orientation and wall count usually matter at least as much as moving infill from, for example, 15% to 30%.

Layer adhesion is directional. If a hook, tab or screw boss will be pulled across the layer lines, rotate the model or redesign the feature before trying to solve everything with infill.

Speed and flow

Bambu Studio separates outer-wall, inner-wall, infill, bridge and first-layer speeds. Slowing the outer wall can improve visible finish while leaving internal paths faster. The first layer should prioritise adhesion rather than headline speed, and bridges need enough cooling and controlled flow to span a gap.

The filament's maximum volumetric speed is a hidden ceiling on how much plastic the hotend can reliably melt. Increasing motion speed will not help if the material profile limits flow—and raising volumetric flow too far can cause under-extrusion and weak layers. Calibrate the actual filament rather than copying an aggressive number from another material.

Support settings

• Normal versus tree support: normal supports are predictable under broad flat areas; tree supports can reach organic features with less contact and material.
• Threshold angle: a more aggressive threshold generates support under more surfaces. Inspect the sliced preview before printing.
• Build plate only: prevents support starting on the model, reducing scars, but can leave some internal overhangs unsupported.
• Interface layers: create a denser surface between support and model. They improve underside quality but add time and material.
• Top Z and XY distance: smaller gaps support the model more closely but can be harder to remove. Material pairs and layer height affect the best value.

Adhesion, multi-colour and material changes

A brim adds contact area around the part and is useful for narrow feet, tall models and warp-prone materials. A skirt mainly primes the nozzle and does not hold the part down. Clean the correct build plate and choose the appropriate plate profile before increasing brim width.

For multi-colour or multi-material jobs, the prime tower and flushing volume help stabilise material changes. “Flush into infill” or another object can reduce waste, but only when colour contamination inside that region is acceptable. Do not flush an incompatible support material into structural model regions.

Three sensible starting strategies

1. Decorative model: smaller layer height, controlled outer-wall speed, planned seam, moderate walls and infill, supports tuned for surface access.
2. Functional part: orient for the load, increase wall loops and shells, choose a suitable material, then use enough infill to support the geometry.
3. Fast prototype: larger layer height, standard profile, moderate infill and minimal supports—while keeping the first layer conservative.

Always inspect Preview after slicing. It reveals unsupported islands, seams, colour changes, bridge paths, wall generation and the real source of print time.

For slicing help, filament selection or a professionally printed part, contact 3dp@fashion3d.com.au.

Further reading

• Official Bambu Studio feature overview
• Official Bambu Studio release notes

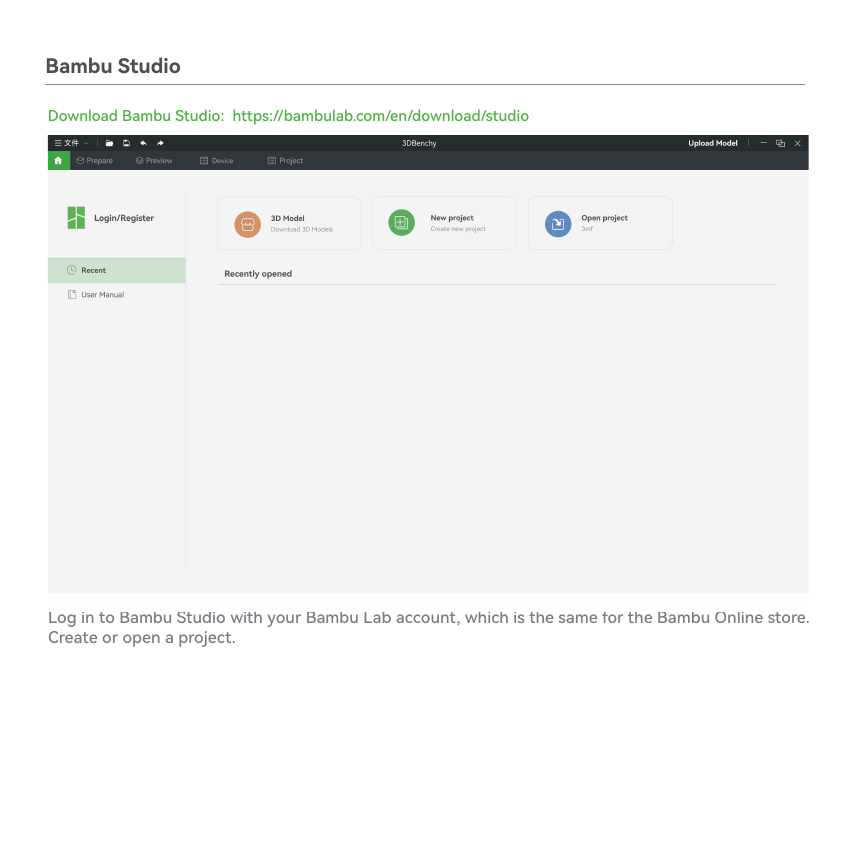

Screenshot source: Bambu Lab P1S Quick Start Guide.
