Bambu Lab X2D Explained: Dual-Extrusion Features, Print Volume and Who It Is For
A compact flagship built around purposeful dual extrusion
Bambu Lab announced the X2D in April 2026 as the second generation of its X-series desktop printers. Its headline feature is a two-extruder system, but the more useful way to understand it is not “twice as many colours”. The main direct-drive nozzle is intended to print the model, while the auxiliary rear-fed nozzle can carry a dedicated support or secondary material. A mechanical switching system moves the inactive nozzle away from the print, reducing the need for a large independent toolhead.
For many users, the practical benefit is cleaner support separation: the model can be printed in PLA, PETG or an engineering material while the second nozzle lays down a compatible support interface. This can make complex undersides, internal channels and delicate surfaces easier to finish.
Build volume: read the mode, not only the largest number
The maximum single-nozzle build volume is 256 × 256 × 260 mm. Because the two nozzles occupy different positions, the usable area changes by mode:
| Mode | Published build volume | Best suited to |
|---|---|---|
| Main nozzle | 256 × 256 × 260 mm | General single-material printing |
| Auxiliary nozzle | 235.5 × 256 × 256 mm | Support or compatible secondary material |
| Dual-nozzle intersection | 235.5 × 256 × 256 mm | Parts that require both nozzles across the model |
If a job needs both nozzles, slice it against the dual-nozzle intersection rather than assuming the complete single-nozzle area is available.
Temperature, filtration and sensors
The X2D combines a 300°C nozzle with an actively heated chamber rated to 65°C. That expands the useful material range beyond ordinary PLA, although every filament still needs an appropriate build plate, drying routine and profile. Its three-stage air system combines a G3 pre-filter, H12 HEPA filter and coconut-shell activated carbon. Filtration can reduce particles and odours, but it does not replace sensible room ventilation or the material manufacturer's safety guidance.
Bambu Lab lists 31 sensors across the machine. The vision system checks conditions such as build-plate placement, debris, first-layer problems, spaghetti, clumping and purge-chute jams. These systems can catch common failures; they do not make setup, maintenance or part inspection unnecessary.
Optional accuracy hardware
An optional Vision Encoder is designed to calibrate and compensate motion accuracy, with Bambu Lab describing 50-micron-class capability. This is most relevant for users who care about repeatable dimensional work, fitted assemblies or small-batch production. Remember that motion accuracy is only one part of dimensional accuracy: material shrinkage, extrusion calibration, geometry, cooling and measurement method still matter.
Where the X2D fits
- Choose it for support-intensive models: the auxiliary nozzle can keep support material separate from the model material.
- Consider it for prototypes and short production runs: enclosure, chamber heating, monitoring and optional calibration target repeatable workflows.
- Do not buy it only for the word “dual”: check the supported material combinations and reduced shared build area for your actual parts.
- Compare workflow as well as speed: an existing X1C or P2S may remain perfectly suitable for single-material jobs, while an H2D offers a different size and capability class.
Australian launch pricing
Bambu Lab’s launch announcement listed the X2D at A$1,049 including tax and the X2D Combo at A$1,349 including tax. Pricing, bundles and availability can change, so always check the current product listing before ordering.
Our take
The X2D is most interesting when the second nozzle removes a real production obstacle: difficult supports, repeated material changes or a need for more controlled engineering-material printing. For simple PLA models, the value will depend more on reliability and workflow than on headline specifications.
Need help comparing a printer with your parts and materials? Contact the Fashion3D team at 3dp@fashion3d.com.au.
Further reading

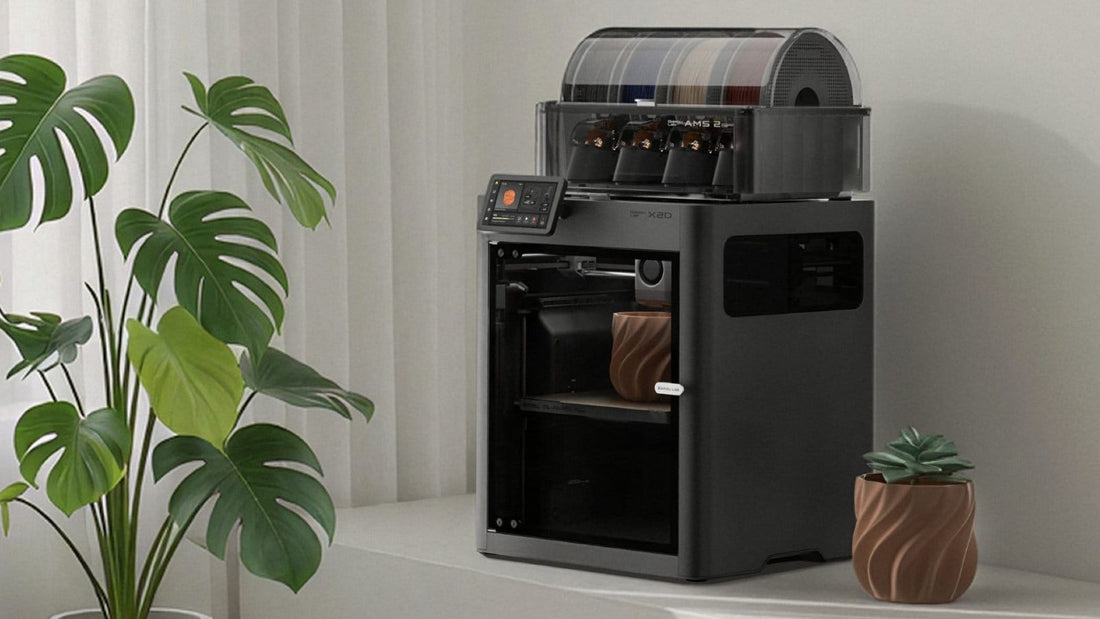

Image source: Bambu Lab official X2D launch article.
